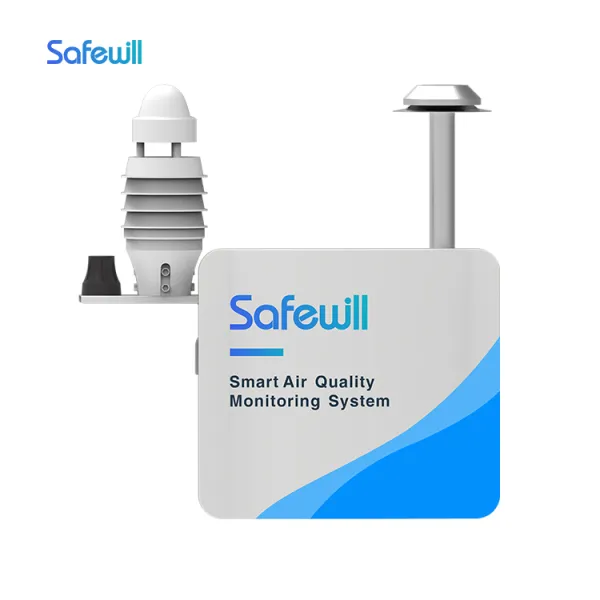

Air Quality Monitor
| Brand | Safewill |
| Model | ES80A-S10 |
| Weight | 9.5Kg |
| Certificates | EPA, ISO14001, ISO9001, ISO45001 |
| Parameter | Multi Gas, PM2.5, PM10, TSP, Weather |
| Detecting Gas | O3, NO2, SO2, CO, CO2, H2S, NH3, HCL, SH3SH, TVOC etc. |

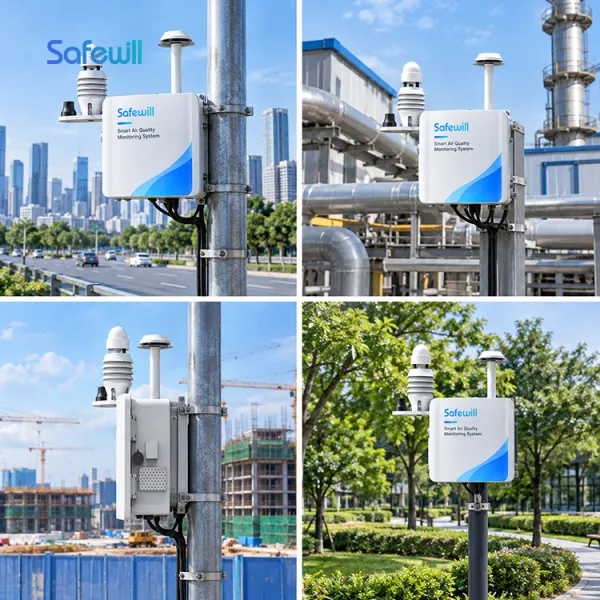

The ES80A-S10 is a compact, modular monitoring station designed for ambient air quality networks and fugitive-emission monitoring. It integrates active-sampling gas sensors, a laser-scattering particulate sensor and an ultrasonic weather station. With wireless connectivity and a cloud platform, it supports continuous monitoring and remote data management.
| MULTI-PARAMETER | ACTIVE SAMPLING | WEATHER READY | REMOTE ACCESS |
| Up to 10 gas types, PM and weather data. | Independent sampling paths for gases and particles. | Ultrasonic wind measurement and outdoor enclosure. | 4G/LTE, cloud dashboard and mobile access. |
| Category | Parameters |
| Parameters Particulate Matter | PM2.5, PM10, TSP |
| Gas Options (up To 10） | SO2, NO2, O2, CO, H2S, CH3SH, TVOC, NH3, CO2, HCL, etc. |
| Core Weather Sensor | Wind Speed, Wind Direction, Temperature, Relative Humidity, Atmospheric Pressure |
| Optional Weather Sensor | Noise, Illuminance, Solar Radiation, Rainfall |
Key Features
1. 10-Parameter Display – Displays 10 parameters simultaneously with real-time updates.
2. Audible Alarm – Built-in buzzer alerts when concentrations exceed preset limits.
3. AQI Classification – Built-in national standard AQI algorithm for air quality grading.
4. Auto Calibration – Automatic calibration at startup after sensor warm-up.
5. Manual Zero Calibration – Helps maintain long-term measurement accuracy.
6. Flexible Installation – Wall-mounted or desktop placement.
7. Low Power Consumption – Designed for extended operation and routine inspections.
8. Easy Operation – Plug-and-play design with no professional setup required.
| PARTICULATE MATTER | |||
| Parameters | Principle | Range | Resolutio |
| PM2.5 / PM10 / TSP | Laser Scattering | 0–5,000 mg/m³ | 1 mg/m³ |
Gas types and measurement ranges are customizable.
| TECHNICAL SPECIFICATIONS | ||||
| Parameters | Principle | Range | Resolution | T90 |
| SO2 | Electrochemica | 0-5 ppm | 1 ppb | <120 s |
| NO2 | Electrochemica | 0-5 ppm | 1 ppb | <120 s |
| O2 | Electrochemica | 0-5 ppm | 1 ppb | <120 s |
| CO | Electrochemica | 0-10 ppm | 0.015 ppm | <120 s |
| H2S | Electrochemica | 0-10 ppm | 0.002 ppm | <120 s |
| CO2 | NDIR | 0-5000 ppm | 1 ppm | <120 s |
| NH3 | Electrochemica | 0-10 ppm | 0.001 ppm | <120 s |
| HCL | Electrochemica | 0-100 ppm | 0.001 ppm | <120 s |
| CH3SH | Electrochemica | 0-10 ppm | 0.001 ppm | <120 s |
| TVOC | PID | 0-10ppm | 0.001ppm | <120 s |
| WEATHER MEASUREMENT | |||
| Parameters | Principle | Range | Resolution |
| Wind Speed | 0–40 M/s | ±(0.5 + 2% Fs) M/s | 0.1 M/s |
| Wind Direction | 0–360° | ±3° | 1° |
| Temperature | -30 To +60 °c | ±0.5 °c | 0.1 °c |
| Relative Humidity | 0–99% Rh | ±3% Rh | 0.1% Rh |
| Atmospheric Pressure | 0–120 Kpa | ±0.1 Kpa | 0.1 Kpa |
| Noise | 30–120 dB | ±3 dB | 1 dB |
| Illuminance | 0–200,000 Lux | ±5% | 1 Lux |
| Solar Radiation | 0–1,800 W/m² | ±3% | 1 W/m² |
| Optical Rainfall | Max. Instantaneous 24 Mm/min | ±3% | 0.1 Mm |
Color Customization To Create a Unique Appearance
