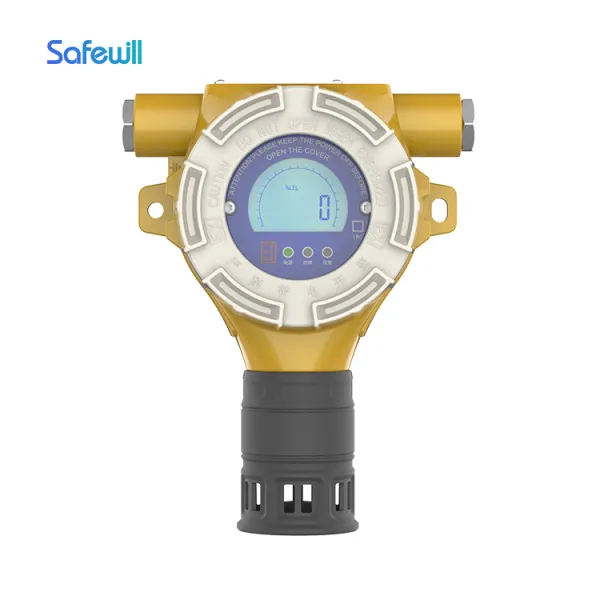

Fixed Gas Detector
| Brand | Safewill |
| Model | ES10C |
| Display | LCD/LED Screen |
| Detection Method | Diffusion |
| Weight | 2Kg |
| Certificates | CE, ATEX, SIL, RoHS, ISO14001, ISO9001,ISO45001 |
| Detected Gas | CO, H2S, NH3, O3, O2, SO2, CH4, VOC, NO, NO2, HCL, CO2, N2, EX, Ar, HCN, He, H2, HF, SF6 etc. |
Functional characteristics
LCD panel design, direct display;
Smart sensors, modular design, convenient maintenance;
Multi-point calibration + temperature compensation, the data more accurate;
One-click restore factory Settings to prevent wrong operation;
Triple waterproof design;
4 ~ 20 mA, RS485 output signal is optional;
Two groups of passive relay output;
The infrared remote control, dangerous places to avoid open operation;
Three color backlighting: white (normal), orange (failure), red (alarm) indicating the scene state;
Performance
Detection gas: combustible gas, toxic gas, VOC
Detection principle: catalytic combustion type, electrochemical type, light ion type, thermal conductivity type, infrared NDIR type
Accuracy: ±3% F.S.
Reduplication: ±2%
Response time: T90 < 30S (combustible gas)
Electrical characteristics
Power supply: 24VDC (normal working voltage range: 10 ~ 30VDC)
Power consumption: < 1.5W(toxic gas);< 2.5W(combustible gas)
Output signal: three-wire 4 ~ 20mA or four-wire RS485 or both output at the same time;Two passive relay (24VDC 2A)
Structural features
Main material: aluminum alloy
Weight: about 1.6kg
Size: 185*137.2*90.7mm (L*W*H)

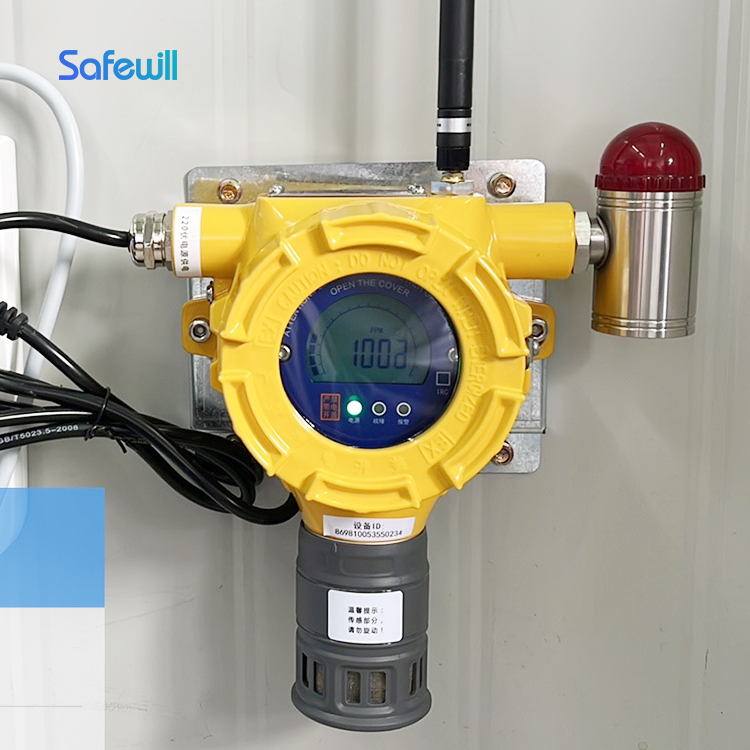

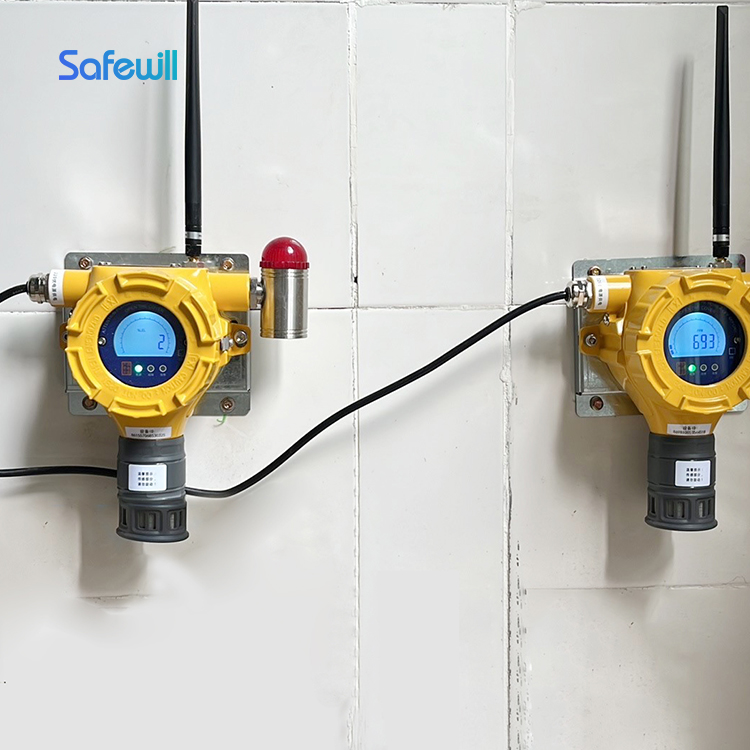

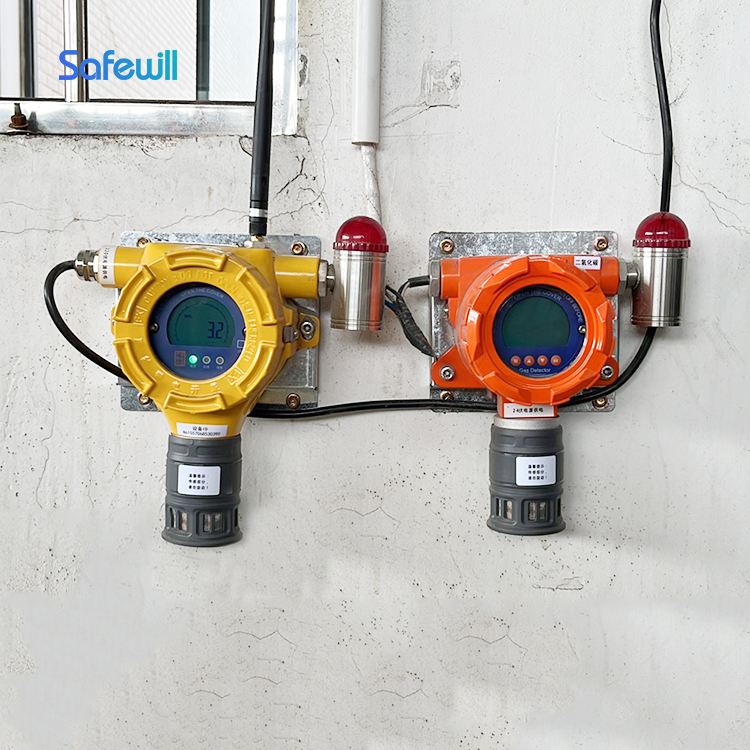

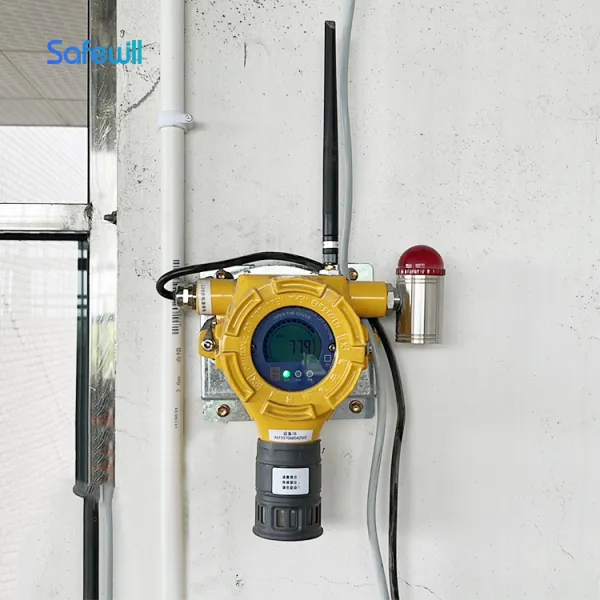

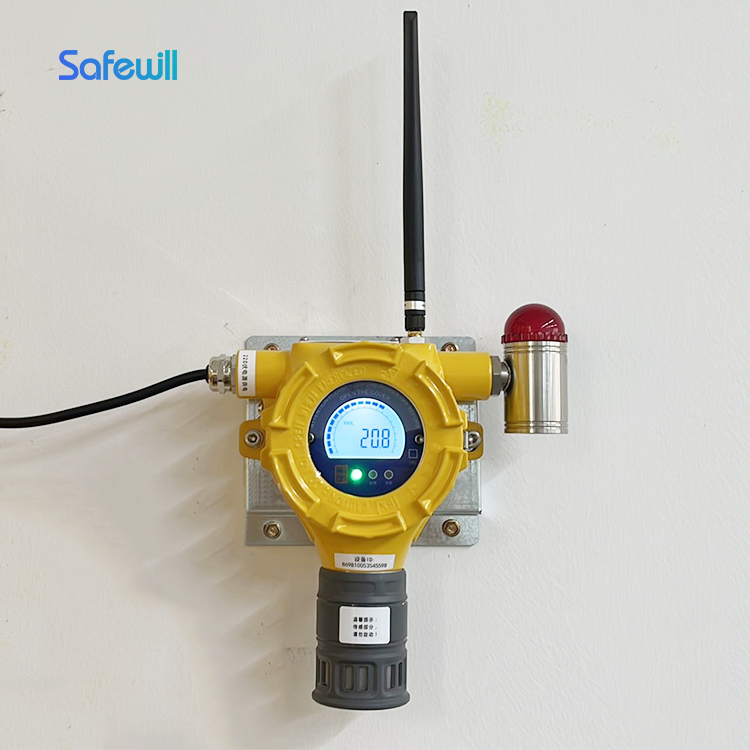

Installation: wall - mounted, horizontal pipe, vertical pipe
Electrical service environment
Protection class: IP66
Temperature range: -20℃ ~ 50℃(toxic gas)
-40℃ ~ 70℃(combustible gas)
Humidity range: 10 ~ 95%RH (no condensation)
Pressure range: 86 ~ 106kPa
 |  |
 |  |
The cross-sectional area of the selected cable and the transmission distance of 24V power supply are shown in the table below
Cable core cross-sectional area (mm2) | 1.00 | 1.50 | 2.50 |
Resistance (ohms/km copper wire) | 18.1 | 12.1 | 7.4 |
Maximum cable distance (m) | 2000 | 3000 | 4000 |
1000 | 1500 | 2000 |
Standard accessories
Name | Note |
Remote control | Black |
Dust cover | With diffuse calibration function |
Mounting bracket | SGCC |
Hoop | With the mounting bracket |
Options
Name | Note |
Flow hood | Circulation type |
Gas chamber extension welding cover | 304 stainless steel |

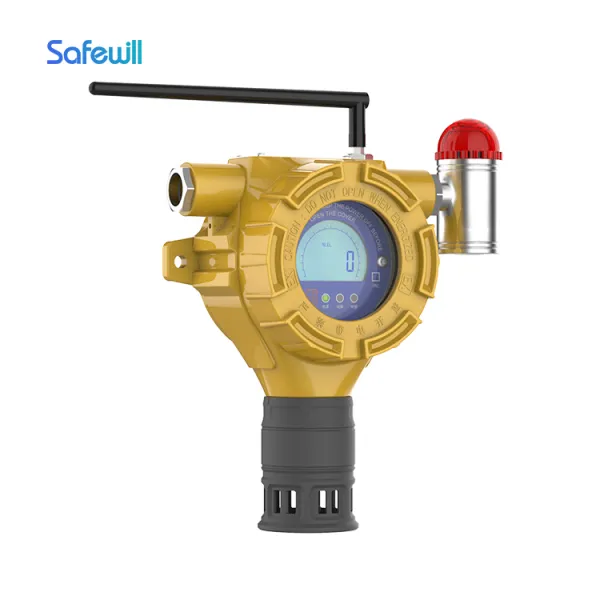

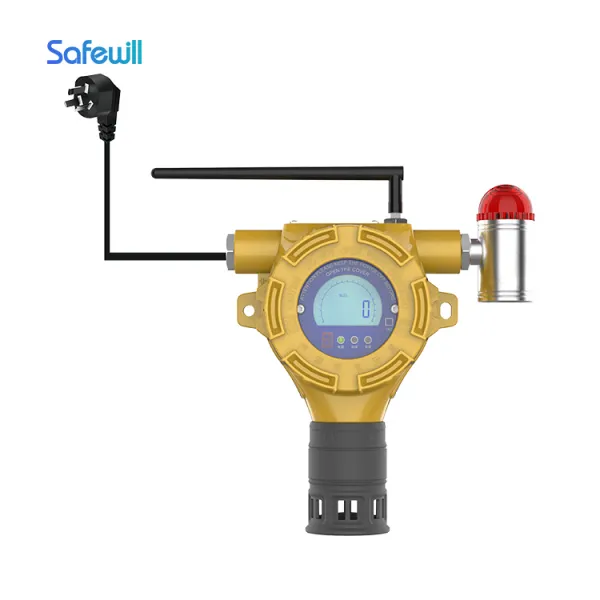

Sound and light alarm | Optional G1/2, G3/4 thread interface |
List of measurable combustible gases
Name | Burning limit (V%) | |
lower limit | upper limit | |
methane | 5 | 15 |
toluene | 1.2 | 7.1 |
methanol | 6.7 | 36 |
Methyl formate | 5 | 23 |
Ethyl formate | 2.8 | 16 |
Methyl ether | 2 | 10.1 |
ethane | 3 | 15.5 |
acetylene | 2.5 | 100 |
ethanol | 3.3 | 19 |
ethyl benzene | 1 | 6.7 |
ethylene | 2.7 | 36 |
Methyl acetate | 3.1 | 16 |
Ethyl acetate | 2.2 | 11 |
N-butyl acetate | 1.7 | 7.3 |
propane | 2.1 | 9.5 |
propyl alcohol | 2.1 | 13.5 |
propylene | 2 | 11.1 |
acetone | 2.6 | 12.8 |
butane | 1.9 | 8.5 |
pentane | 1.4 | 7.8 |
hexane | 1.1 | 7.5 |
heptane | 1.1 | 6.7 |
octane | 1 | 6.5 |
nonane | 0.7 | 5.6 |
carbon monoxide | 10.9 | 74 |
ammonia | 15 | 33.6 |
hydrogen | 4 | 75 |
benzene | 1.3 | 7.1 |
List of detectable toxic gases
Name | Range | Response time T90 (s) |
hydrogen arsenide | 0-5ppm | <90 |
acetylene | 0-10/100ppm | <90 |
ethylene | 0-10/100ppm | <80 |
formaldehyde | 0-10/50ppm | <80 |
methanethiol | 0-10ppm | <90 |
chlorine | 0-10/50/200ppm | <90 |
chlorine dioxide | 0-1/50ppm | <90 |
carbon monoxide | 0-100/500/1000ppm | <30 |
epoxy ethane | 0-10/100/500ppm | <120 |
hydrogen | 0-1000/40000ppm | <60 |
hydrogen peroxide | 0-100/500ppm | <60 |
hydrogen sulfide | 0-100/1000ppm | <60 |
hydrogen chloride | 0-50/200ppm | <80 |
hydrogen cyanide | 0-50ppm | <30 |
hydrogen fluoride | 0-10/100ppm | <90 |
ammonia | 0-20/100/1000ppm | <90 |
nitric oxide | 0-250/2000ppm | <60 |
nitrogen dioxide | 0-20/2000ppm | <60 |
oxygen | 0-30%VOL/100%VOL | <25 |
ozone | 0-1/10/100ppm | <90 |
phosphine | 0-20/1000ppm | <30 |
silane | 0-50/200ppm | <60 |
sulfur dioxide | 0-20/2000ppm | <40 |
tetrahydrothiophene | 0-50mg/m3 | <60 |
helium | 0-2000ppm/0-100%VOL | <25 |
carbon dioxide | 5000ppm/0-20%VOL | <40 |
sulfur hexafluoride | 0-1000ppm/0-100%VOL | <50 |
List of VOC gases
Name | Molecular formula | Range(pp m) | Response time T90 (s) |
benzene | C6H6 | 0-20/50/100 | <20 |
toluene | C7H8 | 0-20/50/100 | <20 |
ethyl benzene | C8H10 | 0-50/100 | <20 |
cyclohexanone | C6H10 | 0-100/200 | <20 |
methylamine | CH5N | 0-100/200/400 | <20 |
aniline | C6H7 | 0-50/100 | <20 |
xylene | C8H10 | 0-20/50/100 | <20 |
ethyl acetate | C4H8O2 | 0-500/1000 | <20 |
methanethiol | CH4S | 0-200 | <20 |
phenol | C6H6O | 0-200/500 | <20 |
