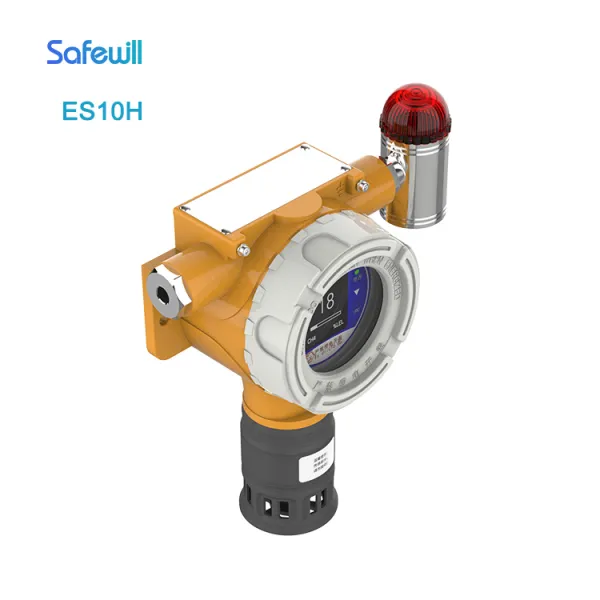

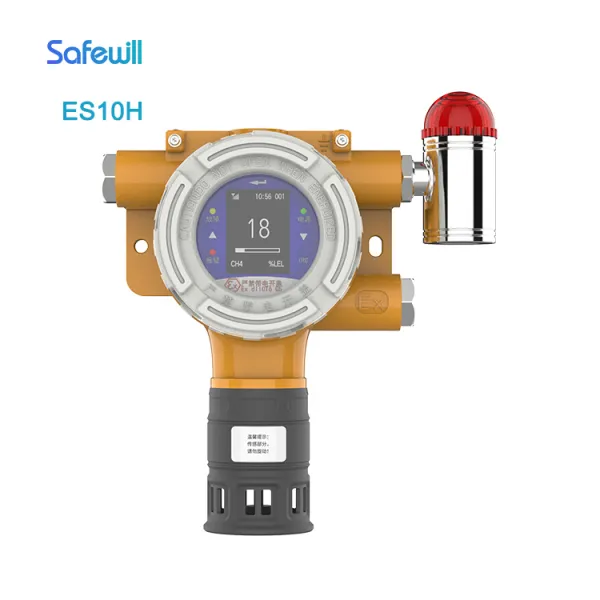

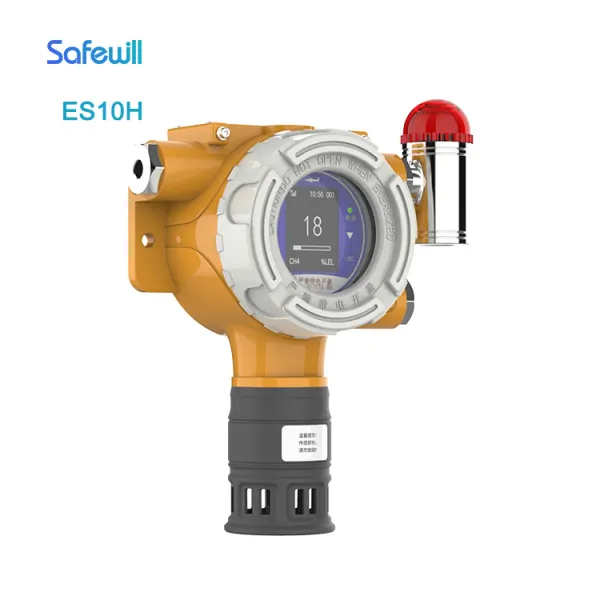

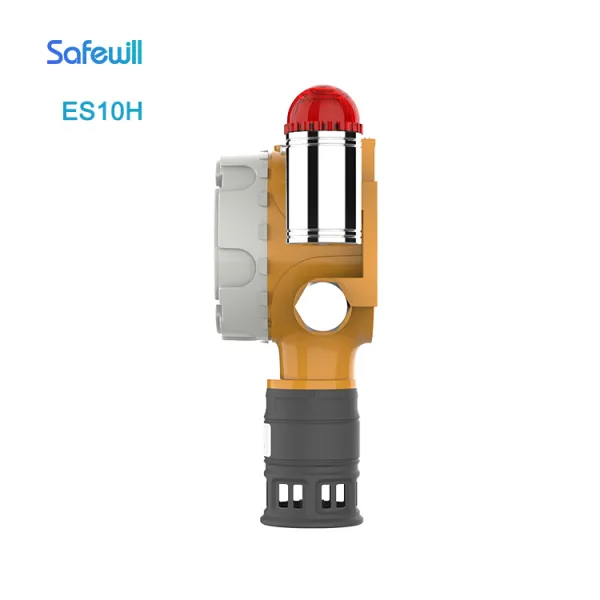

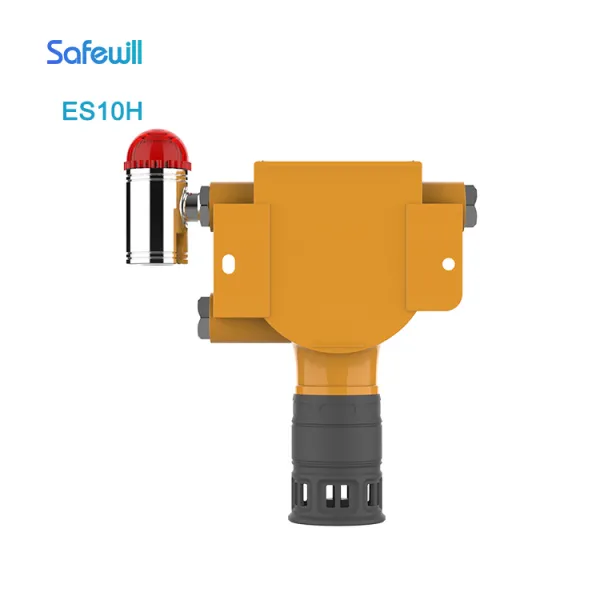

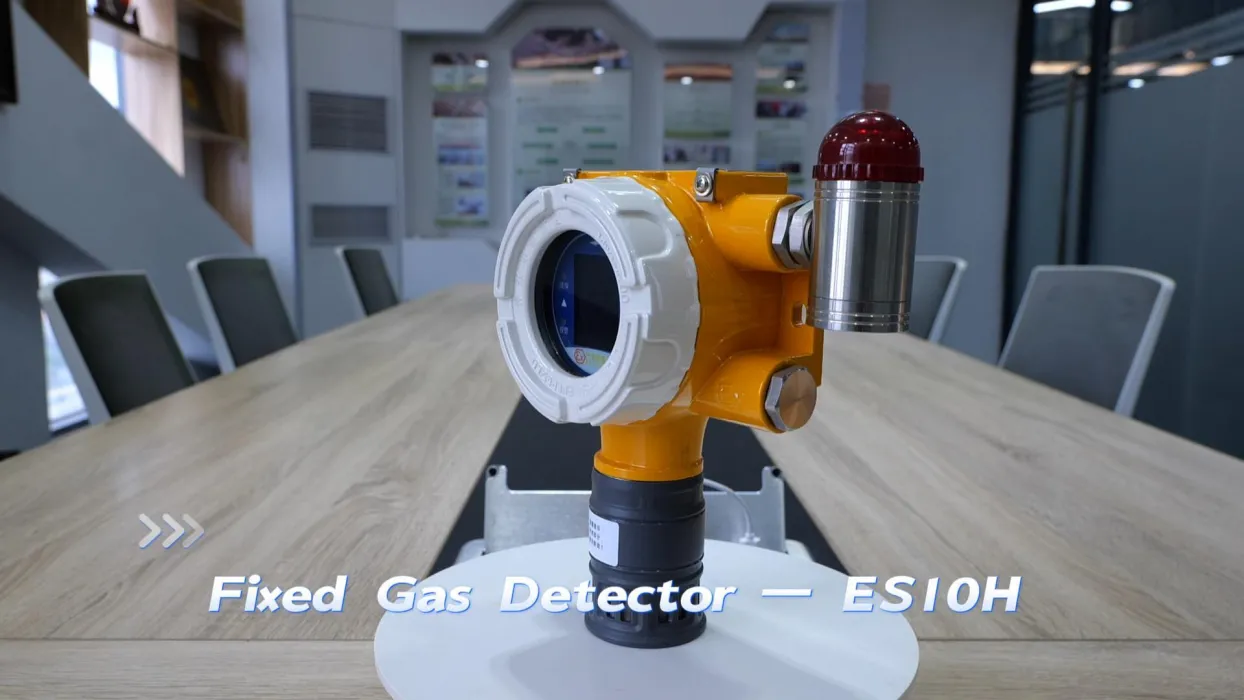

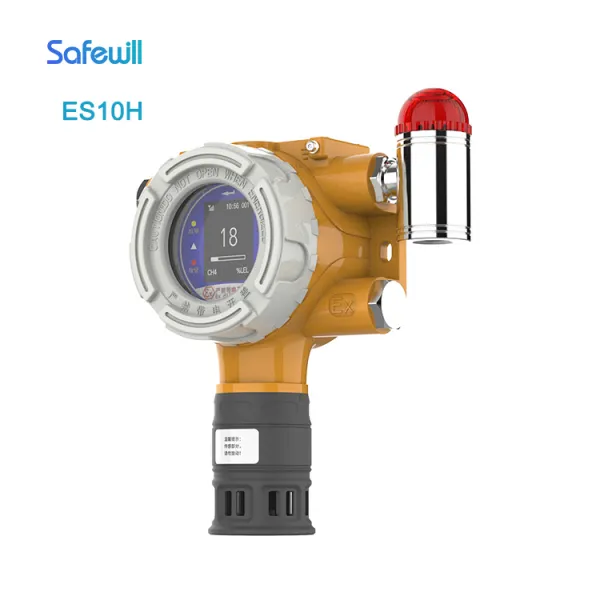

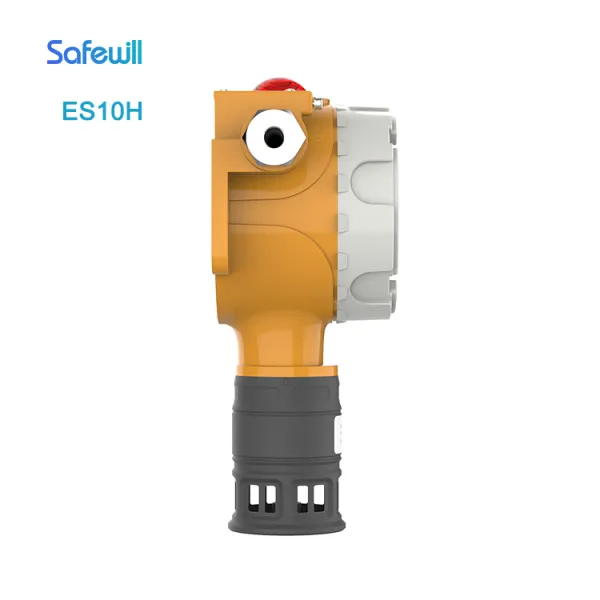

Fixed Gas Detector
| Brand | Safewill |
| Model | ES10H |
| Display | LCD/LED Screen |
| Detection Method | Diffusion |
| Weight | 4KG |
| Certificates | CE, ATEX, SIL, RoHS, ISO14001, ISO9001,ISO45001 |
| Detected Gas | LEL, CO, H2S, NH3, O3, O2, SO2, CH4, VOC, NO, etc |
Functional characteristics
LED panel design, direct display;
Smart sensors, modular design, convenient maintenance;
Multi-point calibration + temperature compensation, the data more accurate;
One-click restore factory Settings to prevent wrong operation;
Triple waterproof design;
4 ~ 20 mA, RS485 output signal is optional;
Two groups of passive relay output;
The infrared remote control, dangerous places to avoid open operation;
Three color backlighting: white (normal), orange (failure), red (alarm) indicating the scene state;
Alarm method: | Sound and light alarm, relay output alarm |
Accuracy: | ≤±3%FS |
Warm-up time: | ≤ 9 0 sec |
Output signal: | Depends on the actual site environment requirements, the maximum transmission distance is 2000 meters (single-core 1mm2 shielded cable) |
1 channel 4~20mA current signal output | |
1 RS-485 signal output, standard ModBus RTU ( optional function) | |
1 channel sound and light alarm output | |
Relay: | Three groups of passive relays , 24VDC 2 A |
Main Material: | Housing: Die-cast aluminum |
Air chamber: hard anodized aluminum | |
Installation method: | Wall-mounted pipe integrated |
Operating Temperature: | -40℃~+70℃ (flammable); -20℃~+50℃ (toxic) |
Operating humidity: | 10%~95%RH(no condensation) |
Operating Voltage: | 24VDC (normal operating voltage range: 12 ~ 30VDC) |
Power consumption: | <2.5W (combustible gas); <1.5W (toxic gas) |
Work Pressure: | 86~106KPa |
size: | 209 mm*1 99 mm* 86 mm (height*width*thickness) |
weight: | About 2.1 Kg |
Explosion-proof mark: | Exd IIC T6 Gb (flammable gas), Exd ib IIC T6 Gb (toxic gas) |
Protection level: | IP66 |
Implementation standards: | GB15322.1-2019, GB3836.1-2021, GB3836.2-2021, GB3836.4-2021, GB12358-2006 |
Color Customization To Create a Unique Appearance
