Household Gas Detector
| Brand | Safewill |
| Model | JM-H501-WIFI |
| Weight | 0.3Kg |
| Certificates | CE, FCC, Atex, SIL, RoHS, ISO14001, ISO9001,ISO45001 |
| Detecting Gas | CO, CH4 |
Main Features
1. Detection Function: Equipped with carbon monoxide (CO) detection capability using a highly stable electrochemical sensor.
2. Multiple Power Supply Options: Supports three AA batteries or external DC 5V power supply.
3. Smart Connectivity: Connects to the Tuya APP for real-time data display, alarm notifications, and fault status updates, with instant alerts during emergencies.

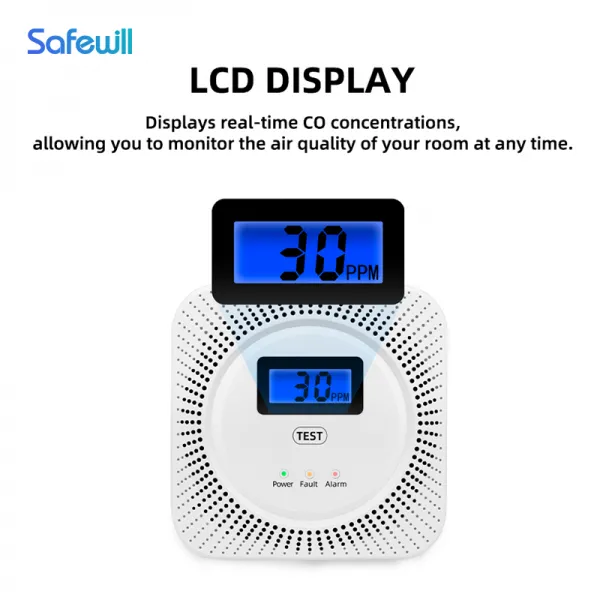

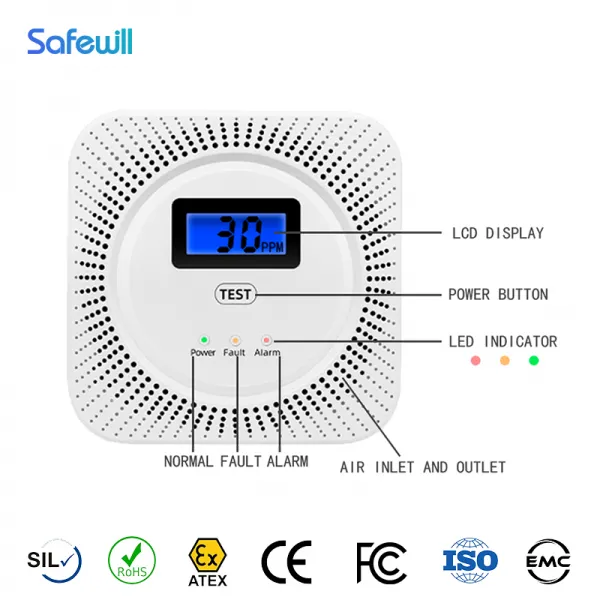

4. Display Interface: Features a backlit LCD screen for clear visibility.
Recommended Installation Areas
1. Bedrooms and Living Areas: Prioritize installation near bedrooms, living spaces, or areas prone to potential carbon monoxide leaks.
2. Installation Height:
2.1 Wall Mounting: Above the top of doors and windows, at least 150mm below the ceiling.
2.2 Ceiling Mounting: At least 300mm away from walls and 1–3 meters from potential gas sources.
2.3 Special Layouts: In rooms with partitions, the alarm should be on the same side as the potential gas source. For sloped ceilings, install the alarm on the higher side.
Installation Precautions
Avoid Installing in the Following Areas:
1. Outside the building.
2. Damp, humid, dusty, or greasy places (e.g., kitchens, garages).
3. Poorly ventilated areas (e.g., vaulted or pointed ceilings).
4. Areas with extreme temperatures (below 0°C or above 50°C, such as attics, corridors, or garages).
Other Notes:
1. Ensure vents are unobstructed and not blocked by curtains, furniture, or other objects.
2. Avoid placing the alarm in locations with restricted airflow to ensure timely responses.
| Technical Parameters | |
| Detection of gas | CO&CH4 |

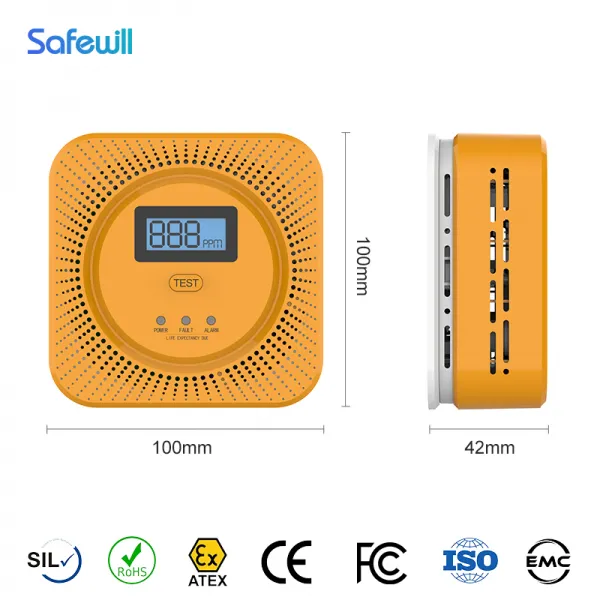

| Size | 100*100*42 |
| Weight | 200G |
| Power supply mode | DC4.5V AAA / Adapter DC5V |
| Standby current | 50UA |
| Temperature range | 0~50℃ |
| Humidity range | Maximum 95%RH (no condensation) |
| Alarm sound pressure | ≥85dB/m |
| Alarm output | Sound and light alarm, remote alarm information push |
| Life | 3 years |
| Response time | ≤30S |
| Installation | Ceiling/wall hanging |
| Working frequency band | FDD-LTE: B1, B3, B5, B8, |
| TDD-LTE: B34, B39, B40, B41 | |
| GSM/GPRS: 900/1800 MHz | |
| Communication methods(optional) | 4G-Cat1 |
| Transmission power | 23dBm+2/-2dB |
| Execution standard | GB15322.2-2019 |

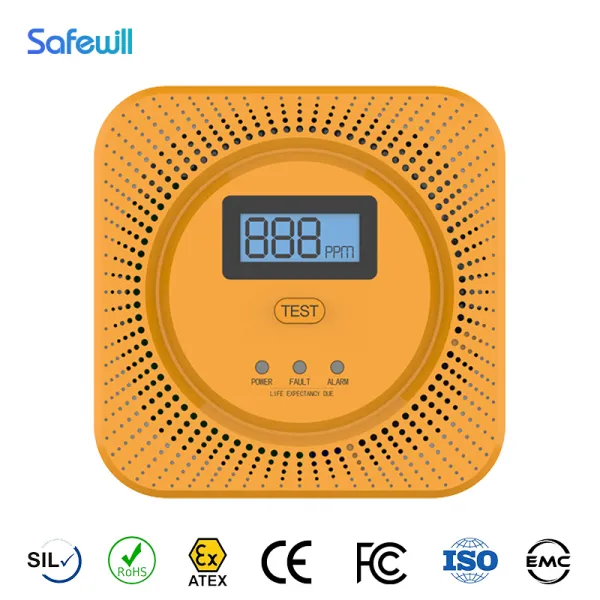

Color Customization To Create a Unique Appearance
