Multi Gas Detector
| Brand | Safewill |
| Model | ES30P |
| Weight | 0.3Kg |

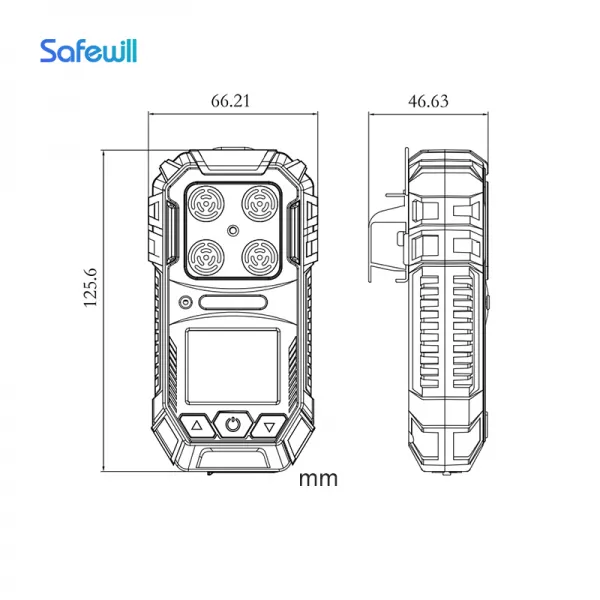

| Size | 125.666.246.6mm |
| Protection Grade | IP66 |
| Certificates | CE, FCC, Atex, SIL, RoHS, ISO14001, ISO9001, ISO45001 |
| Detecting Gas | H2S, CO, O2, EX |

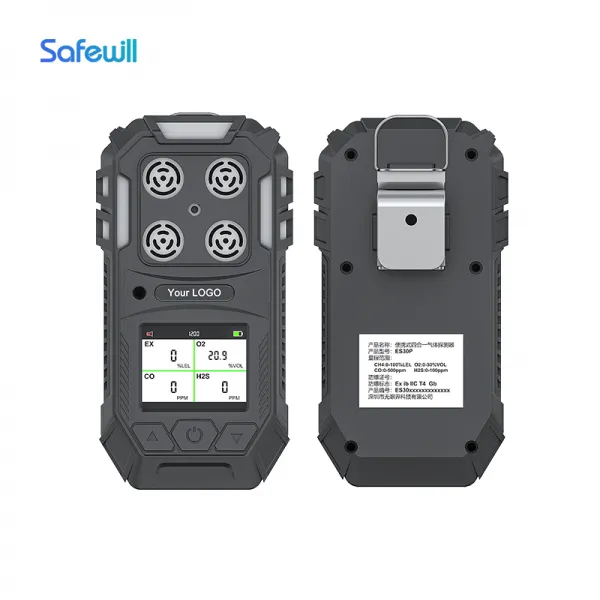

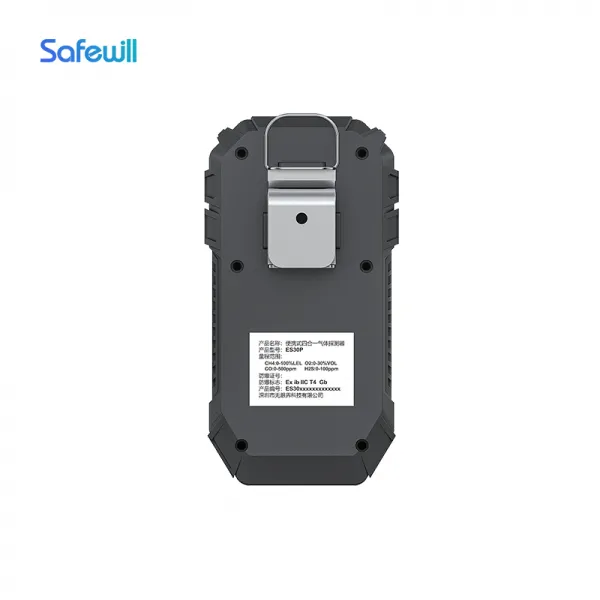

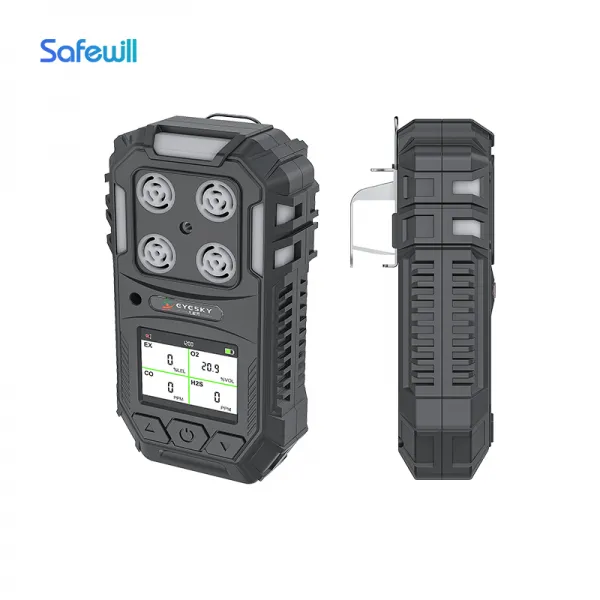

Safewill New ES30P Multi-Gas Detector: A Blend of Innovative Design and Superior Performance
The Safewill ES30P is a portable four-in-one gas detector that combines cutting-edge design with outstanding functionality. Inspired by the owl, its unique and distinctive appearance not only adds a sense of vitality to the device but also symbolizes its sharp, precise, and efficient detection capabilities. Below are its key features:
Appearance & Customization
Protection Level: Rated IP66, suitable for various challenging environments.
Design Aesthetic: Owl-inspired design, distinctive and visually engaging.
Customization Options: Supports personalized customization of shell colors and brand logos to meet individual preferences.
Portability & Application Scenarios
Compact Design: Lightweight and small, making it easy to carry.
Wide Applicability: Suitable for industrial production sites, mines, laboratories, outdoor environments, and more, enabling gas concentration detection anytime, anywhere.
Functionality & Performance
Accurate Detection: Capable of monitoring multiple gases simultaneously with stable performance and reliable data.
Long-Lasting Battery: Equipped with a high-performance rechargeable lithium battery featuring charging and low-voltage protection.
Operates for over 18 hours under normal monitoring conditions, ensuring continuous operation during extended work sessions.
The ES30P is not just a detection device but a reliable safeguard for safety and efficiency. Combining innovative aesthetics with practical functionality, it is an indispensable assistant in the workplace.
| Basic Information | |||
| Operating & Storage Environment | Temperature: -10℃~50℃ | ||
| Humidity: 10~95%RH (non-condensing) | |||
| Pressure: 86~106Kpa | |||
| Sampling method | Diffusion type | ||
| Detecting Range | CO: 0~1000ppm | ||
| H2S:0~100 PPM | |||
| O2: 0~30%vol | |||
| Combustible Explosive Gas (Ex / LEL / CH4): 0~100%LEL | |||
| Alarm Type | low & high alarm, multiple gas alarm, sensor alarm, battery low alarm, prompt tone, automatic shutdown alarm | ||
| Resolution | 0.1%VOL (O2), 1ppm (CO), 1ppm (H2S), 1%LEL (EX) | ||
| Sensor life | 2 years | ||
| Accuracy | ±3%F.S | ||
| Response time | <30s | ||
| Display | Alphanumeric large LCD displays the real time gas concentration and alarm stage | ||
| Backlight | Automatically activated when working in poor lighting environment or the alarm sounding or the button is knobbed down. | ||
| Self-checking Function | Self-checking Battery power, display, sensor, hardware failure | ||
| Explosion-proof | EXiaIICT4 | ||
| Optional Gases | |||||
| No. | Detected Gas | Detecting Scope | Optional Range | Resolution | Low/High Alarm Point |
| 1 | EX | 0-100%lel | 0-100%vol(Infrared) | 1%lel/1%vol | 20%lel/50%lel |
| 2 | O2 | 0-30%vol | 0-30%vol | 0.1%vol | 19.5%vol/23.5%vol |
| 3 | H2S | 0-100ppm | 0-50/200/1000ppm | 0.1ppm | 10ppm/20ppm |
| 4 | CO | 0-1000ppm | 0-500/2000/5000ppm | 1ppm | 50ppm/150ppm |
| 5 | CO2 | 0-5000ppm | 0-1%/5%/10%vol(Infrared) | 1ppm/0.1%vol | 1000%vol/2000%vol |
| 6 | NO | 0-250ppm | 0-500/1000ppm | 1ppm | 50ppm/150ppm |
| 7 | NO2 | 0-20ppm | 0-50/1000ppm | 0.1ppm | 5ppm/10ppm |
| 8 | SO2 | 0-20ppm | 0-50/1000ppm | 0.1/1ppm | 5ppm/10ppm |
| 9 | CL2 | 0-20ppm | 0-100/1000ppm | 0.1ppm | 5ppm/10ppm |
| 10 | H2 | 0-1000ppm | 0-5000ppm | 1ppm | 50ppm/150ppm |
| 11 | NH3 | 0-100ppm | 0-50/500/1000ppm | 0.1/1ppm | 20ppm/50ppm |
| 12 | PH3 | 0-20ppm | 0-20/1000ppm | 0.1ppm | 5ppm/10ppm |
| 13 | HCL | 0-20ppm | 0-20/500/1000ppm | 0.001/0.1ppm | 5ppm/10ppm |
| 14 | CLO2 | 0-50ppm | 0-10/100ppm | 0.1ppm | 5ppm/10ppm |
| 15 | HCN | 0-50ppm | 0-100ppm | 0.1/0.01ppm | 10ppm/20ppm |
| 16 | C2H4O | 0-100ppm | 0-100ppm | 1/0.1ppm | 20ppm/50ppm |
| 17 | O3 | 0-10ppm | 0-20/100ppm | 0.1ppm | 2ppm/5ppm |
| 18 | CH2O | 0-20ppm | 0-50/100ppm | 1/0.1ppm | 5ppm/10ppm |
| 19 | HF | 0-100ppm | 0-1/10/50/100ppm | 0.01/0.1ppm | 2ppm/5ppm |
| Note: The above table is a general parameter. If you need other gas and range, please contact us for more details. | |||||

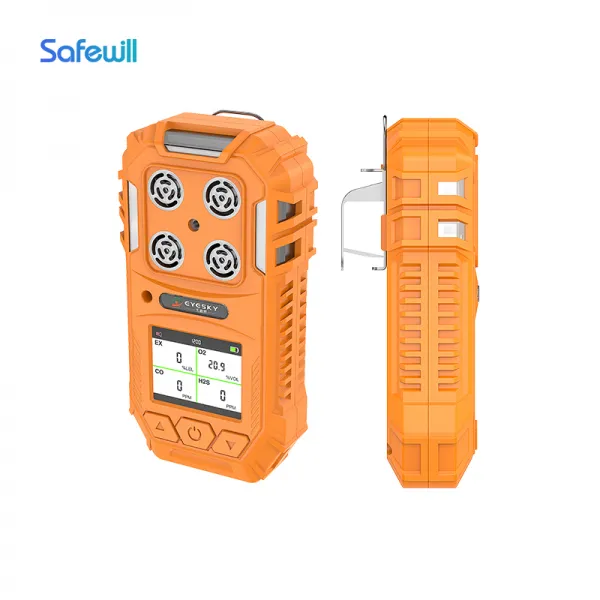

Color Customization To Create a Unique Appearance
