| Brand | Safewill |
| Model | ES20B |
| Weight | 200g |
| Certificates | CE, RoHS, ATEX, FCC, SIL |
| Detecting Gas | EX O2, H2S, CO, N2, Ar, CO2, etc. |
| Measuring range | EX: 0-100%LEL, O2: 0-30%VOL, H2S: 0-100ppm, CO: 0-500ppm |
Functional characteristics
this portable single gas detector use Aluminum alloy housing;
built-in high-performance pump, flow stability, can open may be shut;
navigation keys, user friendly interface, easy to operate;
single gas detectors switch in both Chinese and English language;
single gas detector can store 10000 groups of data;
intelligent algorithm, multi-point calibration and temperature compensation, more accurate measurement results;

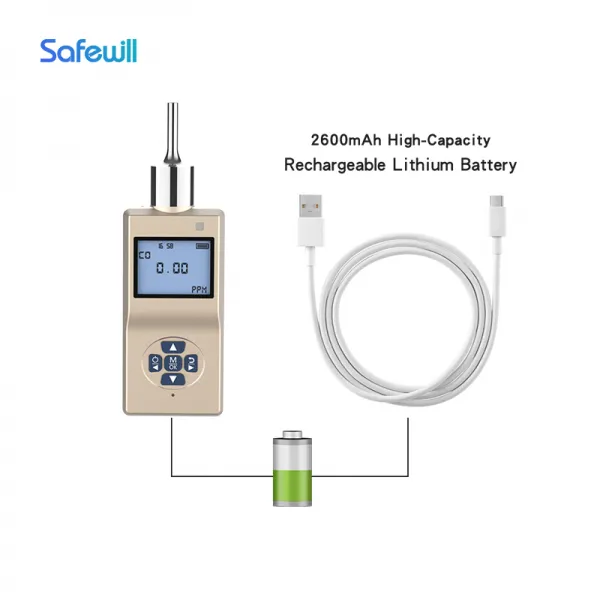

2600 milliampere large capacity lithium battery, continuous work time more than 20 hours;
VOL %, %LEL, mg/m³, PPM, PPH, and different kinds of parts per unit can choose;
Acousto-optic alarm, timely alarm when the concentration exceeds the standard is detected;
Performance
Detection gas: combustible gas, toxic gas, VOC
Detection method: pump suction type
Range: see appendix
Detection principle: catalytic combustion type, electrochemical type, light ion type, thermal conductivity type, infrared NDIR type
Accuracy: ±3% F.S. Reduplication: ±2%
Response time: T90 < 30S (different gas sensors have different response times)
Alarm mode: sound and light alarm, two-color LED alarm light, voice ≥ 75dB@25cm³
Single gas detector Electrical characteristics
Power supply: lithium battery, nominal voltage: 3.7VDC, capacity: 2600 mA
Charging time: ≤6 hours
Battery life: ≥12 hours (normal temperature electrochemical sensor)
Structural features
Main material: aluminum alloy
Weight: about 0.46kg
Size: 200.5*64.8*35.5mm (L*W*H)
Electrical service environment
Temperature range: -20℃ ~ +50℃ (special requirements need to be customized)
Humidity range: 10 ~ 95%RH (no condensation)
Pressure range: 86 ~ 106kPa
Contact Us for a Quote Today
For more details about our products, pricing, and shipping information, feel free to reach out. We look forward to providing you with the best service possible!
| Product name | Portable single gas detector | |||
| Measuring gas | O2 | CO | H2S | Combustible |
| Measuring range | 0-25%VOL | 0-500ppm | 0-100ppm | 0-100%LEL |
| More Sensor | N2 Ar H2 CL2 HCL HF CO2 SO2 NO2 SF6 etc | |||
| Measuring type | Pump suction | |||
| Response time | T90<30s | |||
| Display | LCD screen | |||
| Audible | ≥85dB at 1m | |||
| Alarm method | Visual, audible and vibrative signals | |||
| Battery | DC3.7V 2700mAh Lithium battery | |||
| Operating time | ≥8h | |||
| Data log | 100,000 events | |||
| Working temperature | Toxic gases: -20℃～50℃ Combustible: -40℃～70℃ | |||
| Working humidity | <95%RH (no condensation) | |||
| Housing | Rubber enclosure | |||
| Standard accessories | Operation manual, charger, USB cable | |||
| Dimension & weight | 200.5*64.8*35.5mm, about 460g | |||
| Ex grade | Ex ia IIC T4 Gb | |||
| Ingress protection | IP65 | |||
Color Customization To Create a Unique Appearance
