Single Gas Detector
| Brand | Safewill |
| Model | ES20C |
| Weight | 0.36Kg |
| Certificates | CE, ATEX, SIL, RoHS, ISO14001, ISO9001,ISO45001 |
| Detected Gas | CO, H2S, NH3, O3, O2, SO2, CH4, CH2O, NO, NO2, HCL, H2, CLO2, LEL, He |

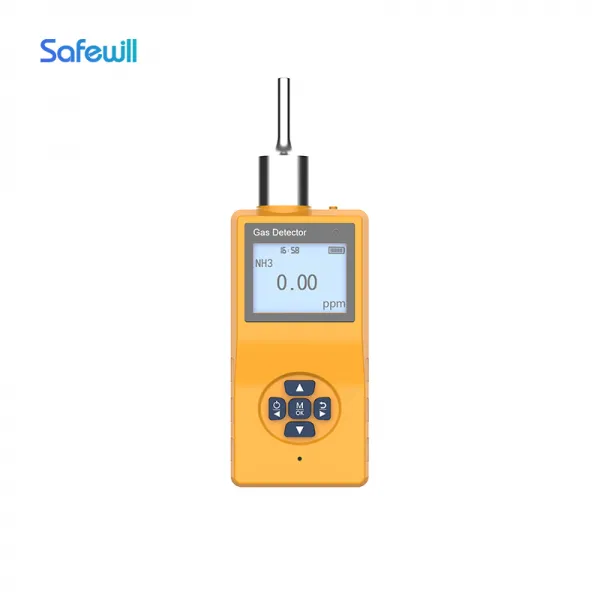

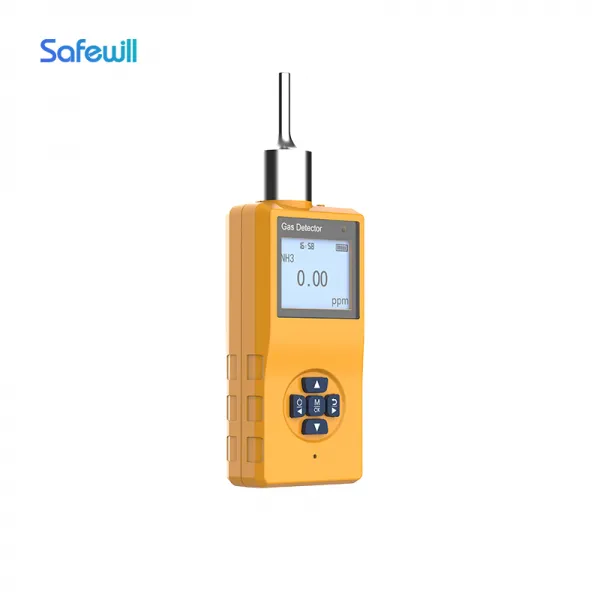

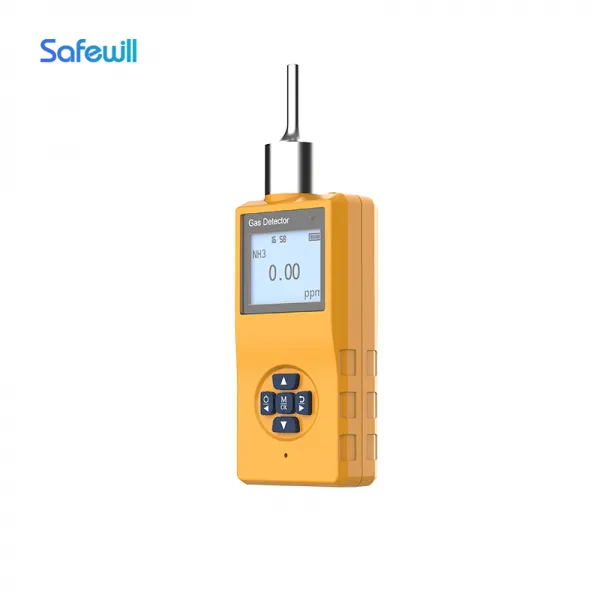

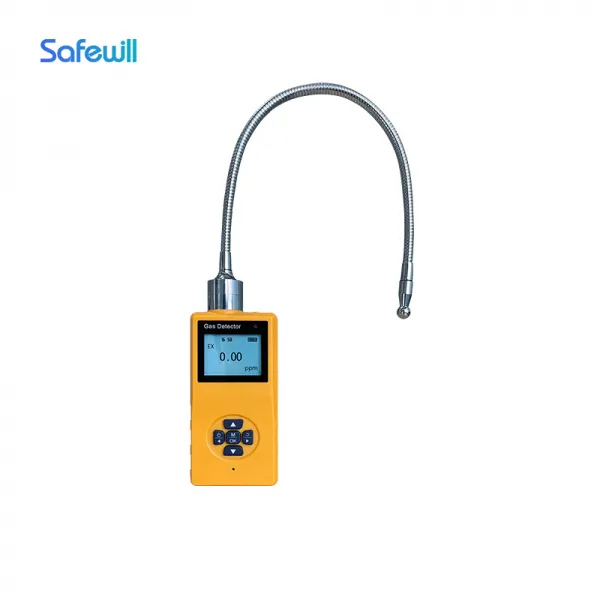

Portable Built-in Pump Single Gas Detector (Plastic Casing): Precision and Convenience in a Compact Design
The portable single gas detector detector, housed in a durable plastic casing, integrates the advanced sensor technology and pump suction to deliver highly accurate measurements. Its intelligent algorithm and multi-point calibration ensure stable performance, while the rechargeable 2600mAh lithium battery allowing 20+ hours of continuous operation. Carbon monoxide tester, CO2 detector, H2S monitor, you can get satisfied with various gas options with this well-designed detector, such as NH3, O2, CH4, TVOC, O3, LPG gas, SO2, NO2, H2S....which makes it a perfect choice to detecting gas leakage or concentration in petrochemical, environmental protection, laboratories, and more.
Safewill provide professional and customer-centric services:
OEM Support: Flexible OEM policy to help partners develop branding
Short Lead Time: Rapid production and delivery within 3 days to meet urgent demands;
Sufficient stock: Ready-to-ship products to minimize delays.
Test and Calibration: Strict test and calibration report issued before delivery from factory;
Warranty & After-Sales Service: Comprehensive warranty and dedicated technical support.
For more details of this high quality gas detector or to place an order, please contact us directly to get an immediate reply!
| Basic Information | ||||
| Product Name | Portable Built-in Pump Single Gas Detector (Plastc Casing) | |||
| Detection Method | Pump Suction | |||
| Data Transmission | USB output | |||
| Preheat Time | 90 Seconds | |||
| Temperature/ Humidity/Pressure | -20°C to +50°C/10%-95% RH (non-condensing)/86-106 KPa | |||
| Power Supply | Lithium battery, nominal voltage: 3.7VDC, capacity 2600mAh | |||
| Charging Time | ≤6 hours | |||
| Operating Time | ≥12 hours (at room temperature with electrochemical sensor) | |||
| Alarm Method | Audible and visual alarms, dual-color LED indicator, sound level ≥75 dB @ 25 cm | |||
| Detection Principle | Electrochemical, catalytic, NDIR, PID, etc,. | |||
| Indication Error | ±3% F.S | |||
| Response Time | T90 < 30 seconds (varies by gas sensor) | |||
| Protection Class | IP54 | |||
| Material | ABS Plastic | |||
| Weight | Approximately 0.36 kg | |||

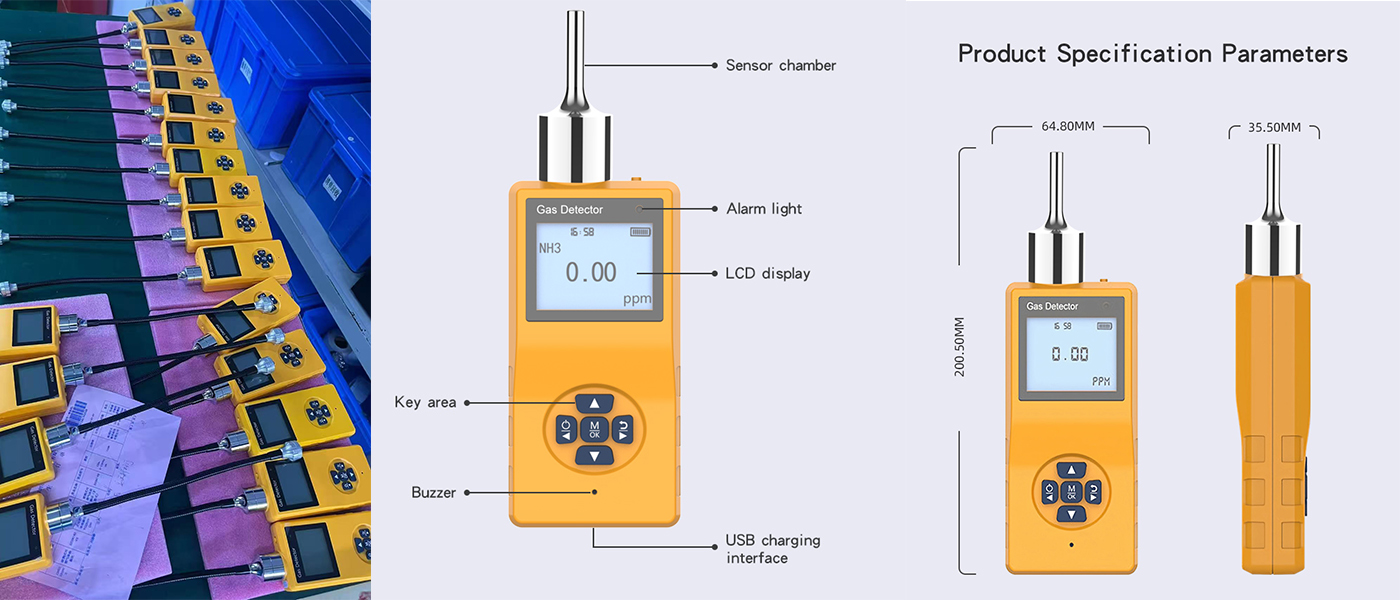

| Dimensions | 220.0 mm × 64.8 mm × 35.5 mm (L × W × H) | |||
| Technical Parameters | ||||
| Gas Options | Detecting Range | Resolution | ||
| Carbon Monoxide(CO) | 0-100/500ppm | 1ppm | ||
| Hydrogen Sulfide(H2S) | 0-100/1000ppm | 1ppm | ||
| Ammonia(NH3) | 0-20/100/1000ppm | 0.1/1ppm | ||
| Ozone(O3) | 0-1/10/100ppm | 0.1/1ppm | ||
| Oxygen(O2) | 0-30%VOL | 1%VOL | ||
| Sulfur Dioxide(SO2) | 0-20/2000ppm | 1ppm | ||
| Methane(CH4) | 0-100%VOL | 1%VOL | ||
| Formaldehyde(CH2O) | 0-10/50ppm | 1ppm | ||
| Nitric Oxide(NO) | 0-250/2000ppm | 1ppm | ||
| Nitrogen Dioxide(NO2) | 0-20/2000ppm | 1ppm | ||
| Hydrogen Chloride(HCL) | 0-50/200ppm | 1ppm | ||
| Hydrogen(H2) | 0-1000/40000ppm | 1ppm | ||
| Chlorine Dioxide(CLO2) | 0-1/50ppm | 0.1/1ppm | ||
| Combustible Gas | 0-100%LEL | 1%LEL | ||
| Helium (He) | 0~10%/30%/50%/99.9%/ 99.999%VOL; 0-1000PPM | 0.1%VOL/1ppm | ||
| For more other gas detecting, please contact us for customization as per your request. | ||||

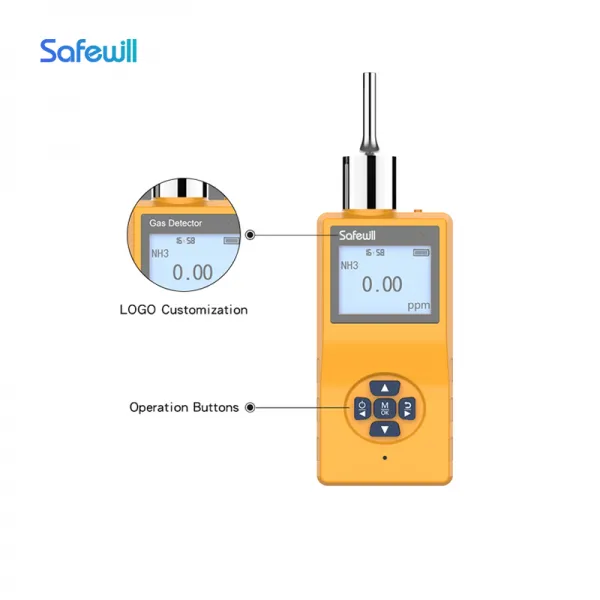

Color Customization To Create a Unique Appearance
